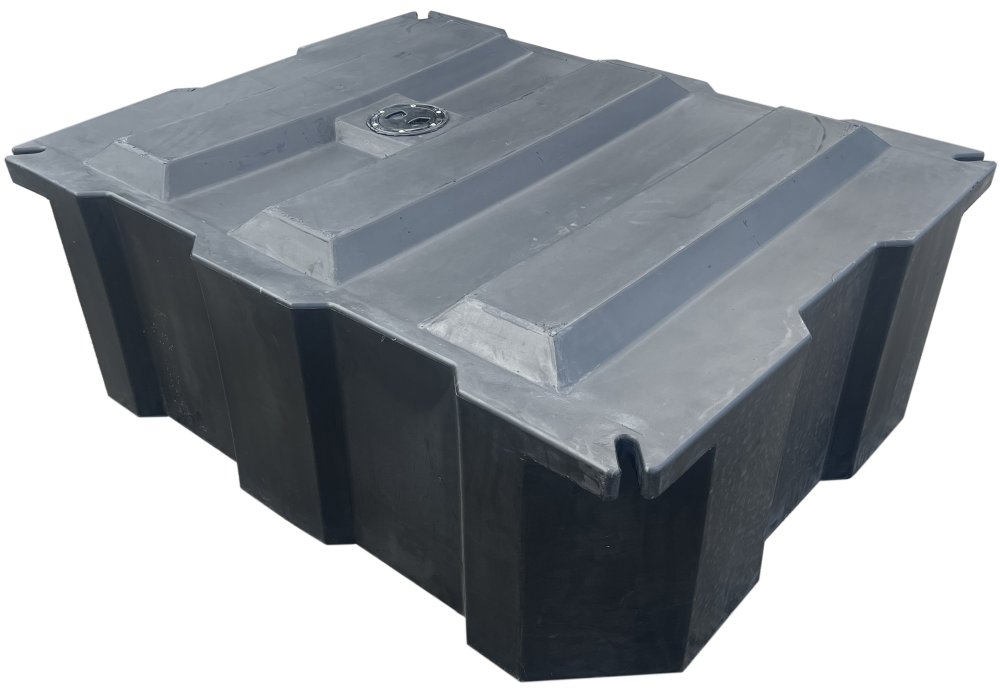

800 LITRE FLOTATION MODULE This float has been specifically designed for use under residential docks. The basic shape has been patterned after the successful 1200 litre and 900 litre commercial marina floats. A residential dock 2.4m x 3.6m uses 4 of these 800 litre floats. Floats can be filled with water or concrete to add ballast to increase stability. Ballast can also be used to raise and lower the float for different freeboard requirements. Floats can also be foam filled for extra security if required. Max load 400kg each

Size
1500mm long
x 1200mm wide
x 520mm deep
Product weight 52kg
Drawing a4-0278 - 650 Litre float





Warning
THIS 'FLOATATION MODULE' HAS BEEN DESIGNED TO FORM PART OF AN INTERGRATED SYSTEM.

THE STRUCTURAL INTEGRITY, FLOTATION CAPABILITY, STABILITY AND OTHER PROPERTIES ARE A FUNTION OF APPLIED LOADINGS AND THE METHOD OF THE MODULE MOUNTING AND APPLICATION.

MARINE DOCK SYSTEMS PTY. LTD. CANNOT GUARANTEE THE PERFORMANCE OF THIS MODULE UNLESS THE COMPANY PROVIDES WRITTEN ENGINEERING CERTIFICATION FOR ITS INSTALLATION AND USE AT A SPECIFIC LOCATION.

FOR TECHNICAL INFORMATION CONSULT MARINE DOCK SYSTEMS PTY. LTD.
